Engineered for high-pressure and fluctuating temperature applications, providing superior sealing and resilience for mechanical equipment.

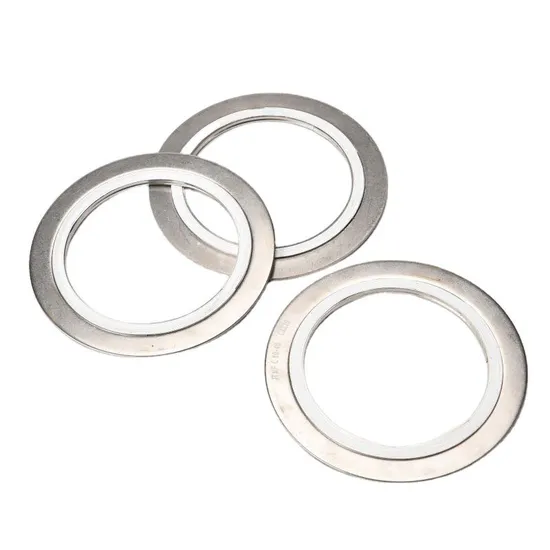

Constructed by alternately winding a V-shaped 316L metal strip and a graphite filler for exceptional resilience and sealability.
Maintains a reliable seal under severe temperature and pressure fluctuations, ideal for demanding industrial environments.
Durable, easy to install, and suitable for systems operating at pressures up to 124 bar.
Designed to meet ANSI/ASME B16.20 standards for safety and performance in critical applications.
Available with inner and outer metal rings for enhanced strength and blowout resistance.
Effectively seals within a wide system temperature range from -196°C to high temperatures.
Material Composition: 316L Stainless Steel Strip and Graphite Filler
Maximum Operating Pressure: 124 bar
Compliance Standard: ANSI/ASME B16.20
Tensile Strength: 13.3 MPa
Rebound Rate: 12%
Density: 1.0 g/cm³
